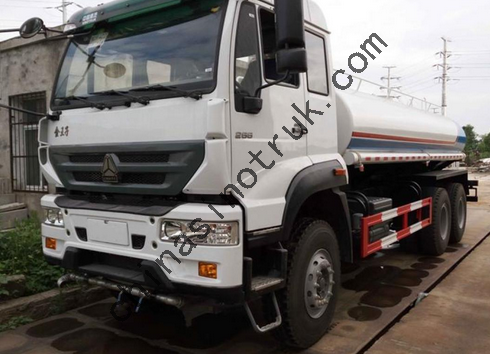

SINOTRUK Golden Prince 6X4 Water Truck

Sinotruk Glden Price Water Tank Truck for Landscape Engineering or Mining area. Our company production of Water Tank Truck have the character of high pressure, spraying range wide, good flushing effect and so on.
Request a Quote
没有此类产品
Product description
Engine
Chassis model
Mixing capacity

Sinotruk Golden Prince6x4 Water Tank Truck

Product Description

Sinotruk Glden Price Water Tank Truck for Landscape Engineering or Mining area. Our company production of Water Tank Truck have the character of high pressure, spraying range wide, good flushing effect and so on.


Specification

Chassis Model

ZZ1257N4641W

Driving Type

LHD (RHD is optional)

Cabin

L2000 cabin, with one sleeper and two seats, air conditioner

Engine

Make: SINOTRUK
Diesel 4-stroke direct injection diesel engine
Engine model: WD615.69, Euro 2, 336 HP
6-cylinder in-line with water cooling, turbo-charging and intercooling
Displacement: 9.726 L

Transmission

HW19710, 10F & 2R with PTO
Ratio:14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)

Steering

ZF power steering, modol ZF8118, hydraulic steering with power assitance

Front Axle

HF9,1x9000 KGS

Steering with double T-cross section beam

Rear Axle

ST16, 2x16000 KGS
Pressed axle housing, central single reduction with hub reduction,with differential locks between wheels and axles.
Ratio:4.42/4.8/5.73

Propeller Shaft

Double universal joint propeller shaft with gear-shaped coupling flange

Chassis

Frame: Uprofile parallel ladder frame with section of 300x80x8mm,reinforced subframe all cold riveted cross members
Front suspension:10 semi elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension:12 leaf semi elliptic springs, bogie spring and stabilizer

Brake

Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
Auxiliary brake: engine exhaust brake

Electrics

Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw
Alternator: 3-phase, 28 V, 1500 W
Batteries: 2 x 12 V, 165 Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

Tyres

315/80R22.5, tubeless tires with one spare tire

Optional:

295/80R22.5, tubeless tires with one spare tire

12R22.5, tubeless tires with one spare tire

12.00R20, radial tires with one spare tire

Fuel Tank

400L

Tank Body

Volume 15-25CBM according to need

Tank material thickness Side 5mm, Cover 6mm;

With front and rear sprinkler system; rear platform; rear water canon

With water pump

With one or two manholes


Picture Shows



Applications

The Water tank truck is mainly used for construction of mines and other enterprises, road flushing and dust covering in large-medium-scale cities.




Competitive Advantage:

1) High pressure, wide range of spraying good flushing effect

2) Blunt head universal adjustment, meet the arbitrary Angle and the combination of the flush operation

3) Pneumatic control and manual control system can realize two functions

4) External sandblasting processing of tank, internal anti-corrosion treatment, Outside surface adopts advanced polyurethane paint, beautiful appearance

5) with all kinds of truck model, which can fulfill your requirement

6) the key parts adopt the world's top technology products

7) based on strong technical support and top level technology make the trucks with high quality and more reliable

8) Front and back high spray is optional, water jet diffusion function, 360 degrees of rotation, 150 degree tilt up and down. Options small flow pump, spraying reel to wake insecticidal garden trees flowers and plants

9) competitive price, cost-effective

10) quick and efficient spare parts supply bring you more convenient

11) fast delivery time, we can arrange production according to your needs exactly and quickly

12) professional import and export dealing procedure, make customs clearance more high efficiency

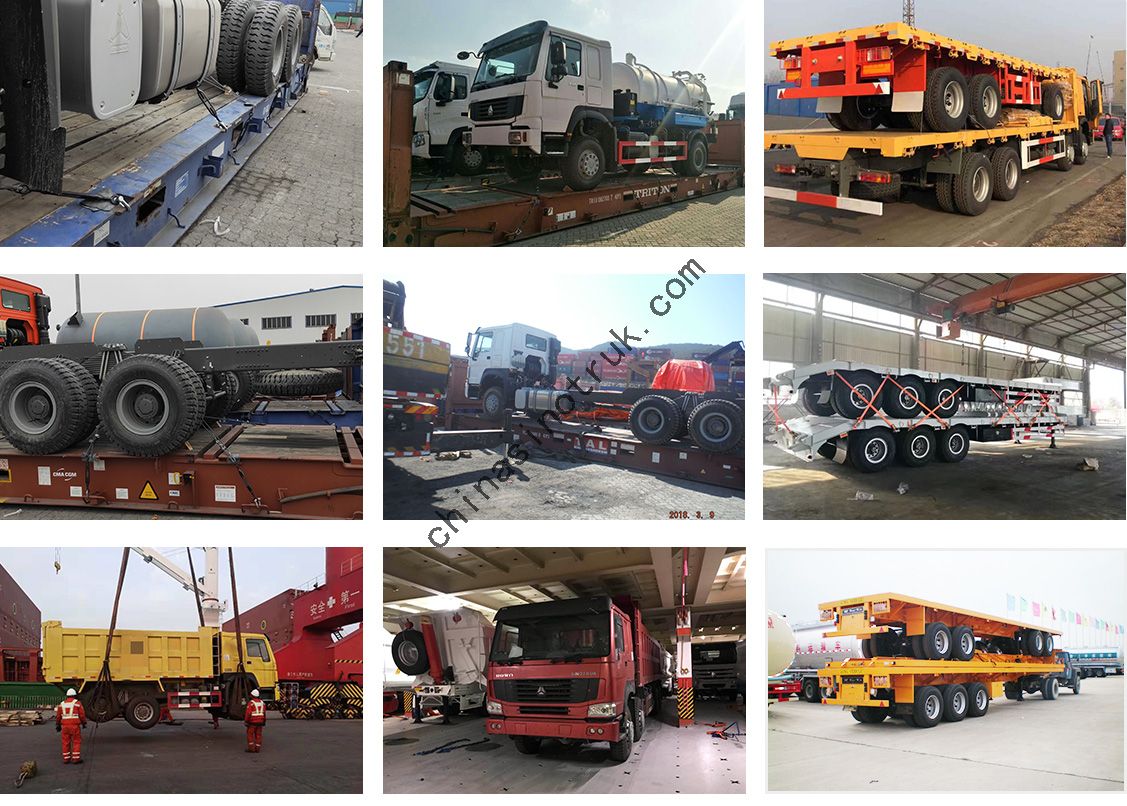

Ocean Shipping

SINOTRUK Golden Prince 6X4 Water Truck
China main port


Corresponding parameter set not found, please add it in property template of background
暂未实现,敬请期待
暂未实现,敬请期待
