4X2 Water Truck
Sinotruk Howo 4x2 Water bowser truck
Water bowser truck Product Description
Sinotruk Howo Water bowser truck for Landscape Engineering or Mining area. Our company production of Water bowser truck have the character of high pressure, spraying range wide, good flushing effect and so on.
Specification
SINOTRUK HOWO 4x2 Water Tank Truck C 12 CBM | |||
Chassis Model | ZZ1167M4617 | ||
Driving Type | 4X2/ 6 wheels Left Hand Driving Right Hand Driving | ||
Production Year | 2018. New truck. | ||
Cabin | HW70, without sleeper and two seats, with A/C HW76, with one sleeper and two seats, with A/C | ||
Engine | Make | Make: SINOTRUK | |
Model | WD615.62, Euro 2, 266 HP | WD615.87, Euro 2, 290 HP | |
Detail | Diesel 4-stroke direct injection diesel engine 6-cylinder in-line with water cooling, turbo-charging and inter-cooling Displacement: 9.726 L | ||
Transmission | HW13710, 10F & 2R, with PTO Ratio: 14.104, 10.648, 7.809, 5.822, 4.315, 3.268, 2.468, 1.81, 1.349, 1.00, 12.33(R1), 2.85(R2) | ||
Steering | ZF power steering, model ZF8098, hydraulic steering with power assistance | ||
Front Axle | HF7, 1x7000 KGS\ | ||
Rear Axle | ST16, 1x16000 KGS Ratio: 4.42/4.8/5.73 | ||
Electrics | Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light | ||
Tires | 295/80R22.5 tubeless tires with one spare tire. | ||
Fuel Tank | 400L | ||
Tank Body | 10-15 cubic meters, Tank material thickness Side 5mm, Cover 6mm; With front and rear sprinkler system; rear platform; rear water canon With water pumppump in and out | ||
Overall Dimension | 8500*2500*3200 mm | ||

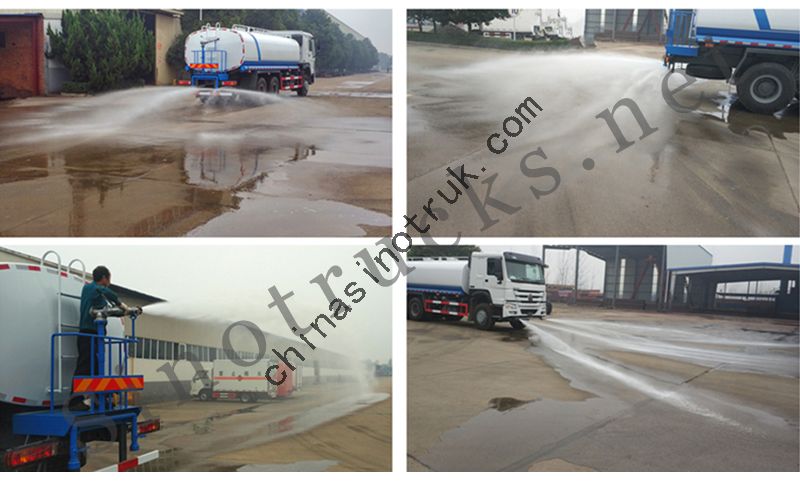

Picture Shows
Applications
The Water tank truck is mainly used for construction of mines and other enterprises, road flushing and dust covering in large-medium-scale cities.
Competitive Advantage:
1) High pressure, wide range of spraying good flushing effect
2) Blunt head universal adjustment, meet the arbitrary Angle and the combination of the flush operation
3) Pneumatic control and manual control system can realize two functions
4) External sandblasting processing of tank, internal anti-corrosion treatment, Outside surface adopts advanced polyurethane paint, beautiful appearance
5) with all kinds of truck model, which can fulfill your requirement
6) the key parts adopt the world's top technology products
7) based on strong technical support and top level technology make the trucks with high quality and more reliable
8) Front and back high spray is optional, water jet diffusion function, 360 degrees of rotation, 150 degree tilt up and down. Options small flow pump, spraying reel to wake insecticidal garden trees flowers and plants
9) competitive price, cost-effective
10) quick and efficient spare parts supply bring you more convenient
11) fast delivery time, we can arrange production according to your needs exactly and quickly
12) professional import and export dealing procedure, make customs clearance more high efficiency

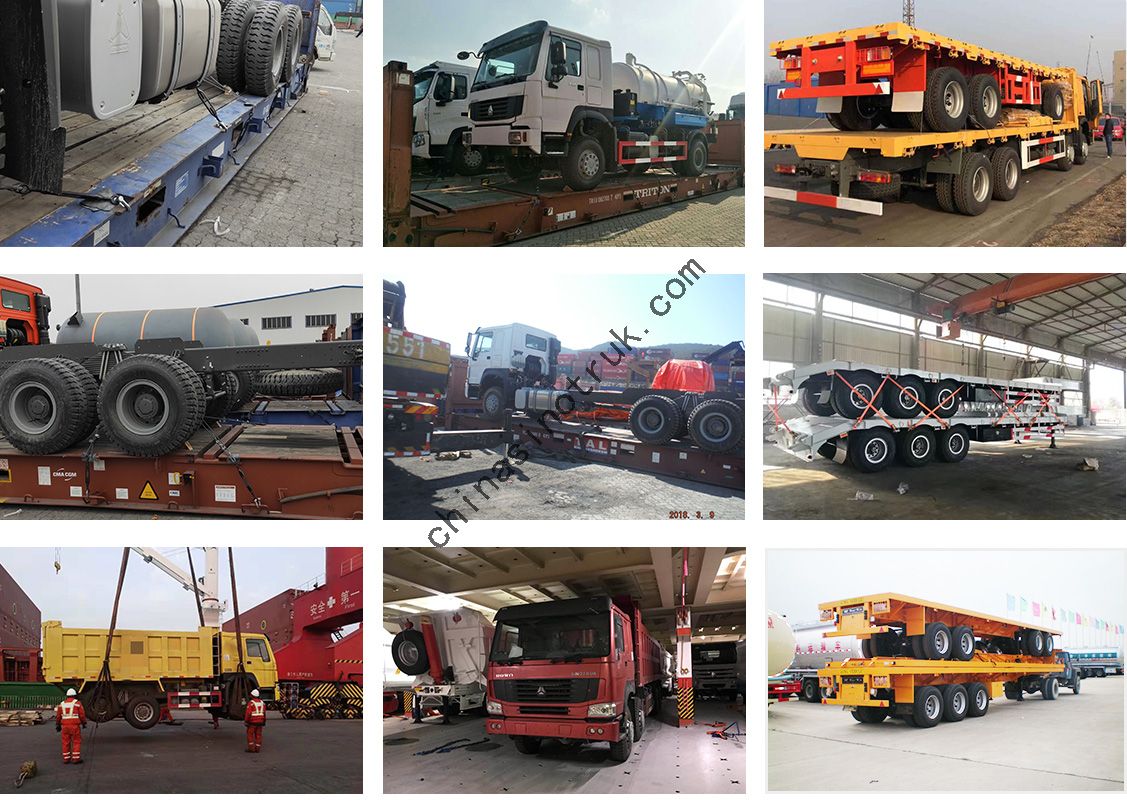

Ocean Shipping
